Which engineering materials hold tight tolerances as temperatures change?

Invar, low-expansion glass-ceramics, and selected engineering ceramics are strong candidates when temperature changes threaten tight dimensional tolerances. Steels can provide a better balance of stability, stiffness, machinability, and cost when some thermal movement is acceptable. Aluminum requires more allowance for expansion, although its low weight and ability to spread heat can make it effective in temperature-controlled or compensated assemblies.

The choice depends on what must stay accurate: an individual length, a clearance between mating parts, a flat mounting surface, or the position of a tool relative to a workpiece. A material with very low thermal expansion can still distort under uneven heating, mounting stress, or mechanical load. Selection therefore starts with the allowable movement of the complete assembly over its operating temperature range.

Convert the tolerance into an allowable thermal movement

For a freely expanding part at a uniform temperature, dimensional change can be estimated using:

Dimensional change ≈ coefficient of thermal expansion × original length × temperature change.

This calculation is a useful first filter. Consider a hypothetical 100 mm feature exposed to a uniform 10°C rise. Using representative expansion coefficients of 23 µm/m·K for aluminum and 12 µm/m·K for carbon steel, the predicted growth is approximately 23 µm and 12 µm, respectively. A low-expansion alloy with a coefficient of 1.2 µm/m·K would grow approximately 1.2 µm under the same conditions.

These are screening values, not design specifications. Expansion depends on composition, processing, and temperature interval. Invar’s behavior is particularly sensitive to the temperature range used to calculate the coefficient. For a wide operating range, use expansion curves or interval-specific data for the actual grade and condition rather than extending a room-temperature value across the entire cycle.

Compare the predicted movement with the thermal portion of the error budget. If a feature has a ±5 µm tolerance, manufacturing variation, measurement uncertainty, loading, and assembly error already consume some of that allowance. Assigning the entire tolerance to thermal expansion leaves no room for those contributions.

Also distinguish predictable movement from permanent change. A component may expand during operation and return to its original dimensions after cooling. Another may retain distortion because machining stresses relaxed or the material crept under load. These behaviors require different controls and should be evaluated separately.

How the main material families compare

Invar: strong for precision lengths near its intended temperature range

Invar 36, an iron-nickel alloy, is a leading candidate for reference structures, precision fixtures, and components whose length must change very little around room temperature. Its low expansion can substantially reduce the burden on temperature control and compensation.

Its limitations matter when the component experiences localized heating. Invar conducts heat relatively poorly compared with aluminum, so a heat source can create persistent temperature differences within the part. Uneven temperatures can produce distortion even when average expansion is small. Geometry, heat-source placement, and mounting conditions remain important.

Machining and dimensional stabilization also deserve explicit attention. Heavy stock removal can redistribute residual stress, while finishing a thin or asymmetric component can expose distortion that was previously restrained. For demanding applications, the manufacturing plan should address material condition, roughing sequence, stabilization where appropriate, and final inspection. Specifying the alloy name alone does not establish dimensional performance.

Steels: a practical balance when expansion is manageable

Carbon, alloy, tool, and stainless steels cover a wide range of precision applications because they combine useful stiffness with established machining, grinding, and heat-treatment routes. Where temperatures are controlled, or mating components expand together, steel can preserve the required functional accuracy without the expense of a specialty low-expansion material.

“Steel” is too broad a specification for thermal selection. Austenitic stainless steels generally expand more than carbon steels and many ferritic or martensitic grades. Heat treatment, hardness, corrosion requirements, and wear performance can further narrow the choice.

For hardened precision components, the sequence of heat treatment, grinding, and any stabilization treatment can be as important as nominal expansion. A part may meet its drawing immediately after finishing yet move later if its condition is unstable. The selected process must suit the specific grade, geometry, and service temperature.

Aluminum: useful where thermal uniformity and low mass matter

Aluminum alloys expand substantially more than low-expansion alloys and most steels. That makes them difficult candidates for uncompensated reference lengths exposed to broad temperature changes. A room-temperature inspection result cannot establish that such a component will remain within a narrow dimensional limit during operation.

However, aluminum can perform well in lightweight mechanisms and structures designed around temperature measurement, compensation, or matched expansion. Its relatively high thermal conductivity helps distribute heat, potentially reducing gradients that would otherwise bend a structure. Whether this advantage outweighs its greater overall expansion depends on geometry and heat flow.

Stiffness must be assessed alongside thermal movement. An aluminum member may need a larger section than a steel member to limit elastic deflection under the same load. Its stock condition and machining sequence also affect distortion, particularly in thin plates, pockets, and asymmetric housings.

Engineering ceramics: select the grade for the thermal problem

Silicon carbide, silicon nitride, and alumina offer different combinations of expansion, stiffness, thermal conductivity, wear resistance, and temperature capability. They should not be treated as one interchangeable group. Silicon carbide is attractive where high stiffness and effective heat spreading are valuable; silicon nitride can suit applications needing low expansion and thermal-shock resistance. Alumina can provide dimensional and wear performance, but it generally expands more than silicon carbide or silicon nitride.

Ceramics introduce manufacturing and joining constraints. Final features may require diamond grinding or other specialized processes, and sharp transitions or concentrated clamping loads can create fracture risks. Metal inserts, adhesive joints, and mounting interfaces may dominate assembly movement even when the ceramic body performs well.

For a precision ceramic component, evaluate the delivered grade and finished geometry. Properties vary with composition, porosity, and processing. A broad family name is insufficient for a close dimensional prediction.

Low-expansion glass-ceramics and fused silica: compelling for reference structures

Selected glass-ceramics provide extremely low expansion over specified temperature intervals, making them useful for optical references, measurement structures, and other applications with small allowable drift. Fused silica also offers low expansion, although its mechanical and thermal properties differ from those of glass-ceramics.

These materials require careful mounting and protection from damaging contact stresses. Their low expansion does not eliminate deflection under load, and their thermal conductivity may allow gradients to persist. A bonded or tightly constrained support can impose enough stress to distort a precision surface despite the substrate’s favorable expansion coefficient.

Engineering polymers require a different level of caution. Grades such as PEEK can serve demanding environments, but thermal expansion, creep, moisture response, and reinforcement direction can limit dimensional precision. Fiber reinforcement may reduce expansion along one direction while leaving different behavior across it. For a loaded precision reference, grade-specific data are essential before treating a polymer as an alternative to metal or ceramic.

Why the assembly can overturn the material ranking

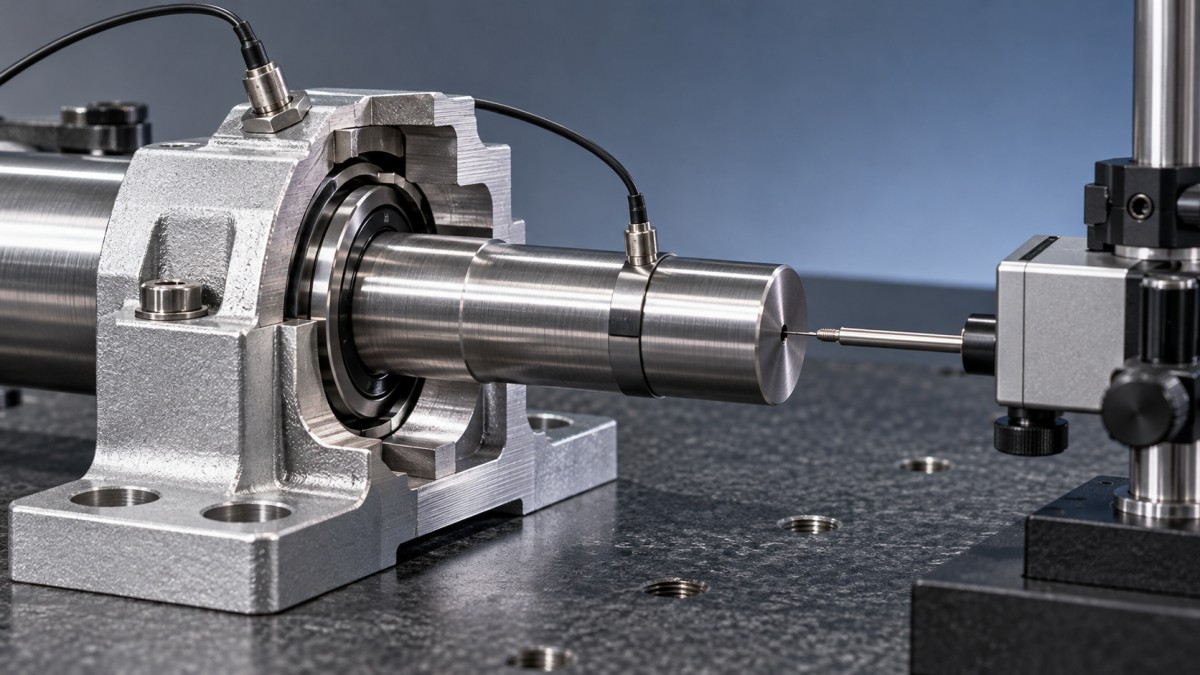

An engineering materials comparison by tolerance becomes useful when it follows the dimensions that determine function. In a shaft-and-housing assembly, clearance changes according to the expansion of both components and their actual temperatures. A low-expansion shaft inside a faster-expanding housing can experience a growing clearance as temperature rises. Reversing the material arrangement can reduce clearance and potentially create interference.

Two components made from the same material can also drift relative to one another if they run at different temperatures. A bearing housing warmed by friction and a cooler supporting frame do not expand equally simply because their alloy specifications match. The relevant inputs are material properties, dimensions, and the temperature of each component.

Restraint changes the problem further. A freely expanding bar primarily changes length. The same bar fixed rigidly at both ends develops thermal stress; depending on geometry and loading, it may bend, buckle, or shift its supports. A low-expansion insert bolted to an aluminum frame can inherit distortion from the frame. Mounting freedom therefore belongs in the material evaluation.

Temperature gradients are especially important for flatness and alignment. Heating one side of a plate more than the other can produce curvature. A single temperature sensor may describe the average condition poorly, particularly during warm-up or intermittent operation. In these cases, a material with moderate expansion and good heat spreading may outperform a lower-expansion material in the actual assembly.

Compensation can correct repeatable thermal movement, provided measurements adequately represent the structure and the relationship between temperature and displacement remains predictable. It is less effective against changing gradients, joint slip, creep, or permanent stress relaxation. Those effects require design or process changes.

What to require before approving a material

Start by defining the operating envelope in terms the supplier and validation team can use. Include the temperature range, warm-up sequence, localized heat sources, load, mounting arrangement, and the time at which accuracy is required. A mechanism that must be precise immediately after startup presents a different problem from one allowed to reach thermal equilibrium.

The material and manufacturing specification should then establish:

• Relevant property data: expansion over the service interval, thermal conductivity, elastic modulus, and any directional dependence.
• Delivered condition: exact grade, product form, heat treatment, and any required dimensional stabilization.
• Manufacturing controls: stock-removal sequence, finishing method, and management of machining or grinding stresses.
• Acceptance conditions: measurement temperature, thermal equilibration criteria, support arrangement, and the functional dimensions to be checked.

Dimensional specifications commonly reference 20°C under ISO 1. That reference allows measurements to be compared consistently; it does not establish performance at operating temperature. A drawing and inspection plan should make clear which dimensions apply at the reference condition and which functional requirements must hold in service.

For demanding assemblies, validation should reproduce the relevant mounting and thermal conditions. Measure the features that determine performance through representative temperature changes, then check whether dimensions return after cooling. This separates reversible thermal movement from permanent drift and can reveal joint behavior that material coupons cannot capture.

The resulting shortlist should follow the dominant source of error. Invar and low-expansion glass-ceramics deserve attention when uniform temperature change drives reference-length error. Selected ceramics become attractive when stiffness, heat flow, wear, or temperature capability also matter. Steel remains a strong choice when expansion can be accommodated, while aluminum suits designs that can exploit low mass and thermal uniformity. Approve the candidate whose finished, mounted behavior fits the available error budget across the required operating cycle.
